Layout 4 demo


Panel: mm, ---> Price: Euro, ---> Spacing: (1..20)mm
PCB size Quantity PCB size Quantity
1: mm, ------> 6: mm, ------>
2: mm, ------> 7: mm, ------>
3: mm, ------> 8: mm, ------>
4: mm, ------> 9: mm, ------>
5: mm, ------> 10: mm, ------>

Ideal num of panels: 27
-------------------- FINISH -----------------------
I1: Need manufacture 29 panels, total price is 452.4
  85x125 ==> per panel:   7, Order:  200, maunfacture:  203
 100x140 ==> per panel:   3, Order:   75, maunfacture:   87
  90x120 ==> per panel:   4, Order:  100, maunfacture:  116
Panel:400x500
Num of objects:14

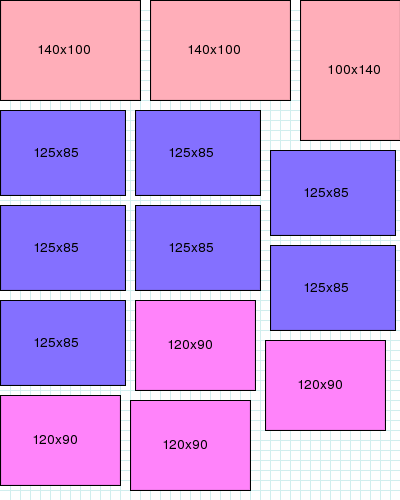

A1: Need manufacture 29 panels, total price is 452.4
  85x125 ==> per panel:   7, Order:  200, maunfacture:  203
 100x140 ==> per panel:   3, Order:   75, maunfacture:   87
  90x120 ==> per panel:   4, Order:  100, maunfacture:  116
Panel:400x500
Num of objects:14

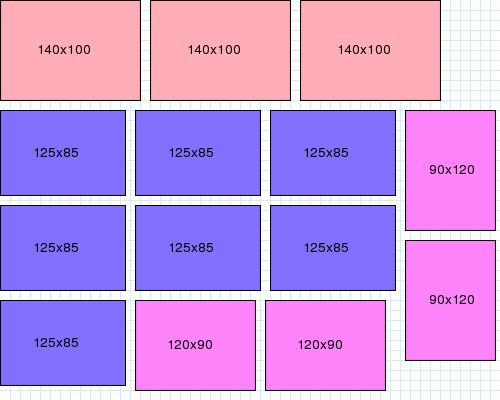

A2: Need manufacture 29 panels, total price is 452.4
  85x125 ==> per panel:   7, Order:  200, maunfacture:  203
 100x140 ==> per panel:   3, Order:   75, maunfacture:   87
  90x120 ==> per panel:   4, Order:  100, maunfacture:  116
Panel:500x400
Num of objects:14
